Problem Statement

The boiler pipeline network in the plant experienced significant internal scaling and fouling caused by continuous high-temperature water circulation and impurity deposition over extended operational hours. The deposits gradually increased flow resistance, reduced heat transfer efficiency, and resulted in higher fuel consumption to maintain rated steam output. Multiple sections of the pipeline started showing differential pressure variations and reduced circulation efficiency, directly impacting boiler performance and energy cost. Traditional manual cleaning was not feasible due to inaccessibility, long shutdown requirement, and risk of mechanical damage to pipeline internals.

Objective

To restore the internal surface condition of the boiler pipelines without mechanical dismantling, improve thermal transfer efficiency, reduce differential pressure losses, and extend the operational life of the boiler by implementing a controlled and optimized chemical cleaning methodology.

Solution

A customized boiler pipeline chemical cleaning protocol was developed consisting of a step-wise sequence:

  1. Initial circulation flushing with demineralized water to remove loose particulates.
  2. Injection of corrosion-inhibited chemical descaling blend designed to dissolve
  3. calcium, magnesium, iron scale, and organic fouling without attacking base metal.
  4. Controlled temperature soaking cycles to maximize reaction efficiency and breakdown of adhered scales.
  5. Neutralization and passivation stage to stabilize metal surface and prevent flash corrosion post-cleaning.
  6. Final high-velocity rinse to remove all dissolved contaminants and reaction residues.

All cleaning parameters (pH, conductivity, iron content, temperature, flow rate) were continuously monitored in real-time to maintain optimized reaction conditions and ensure uniform cleaning across all pipeline sections.

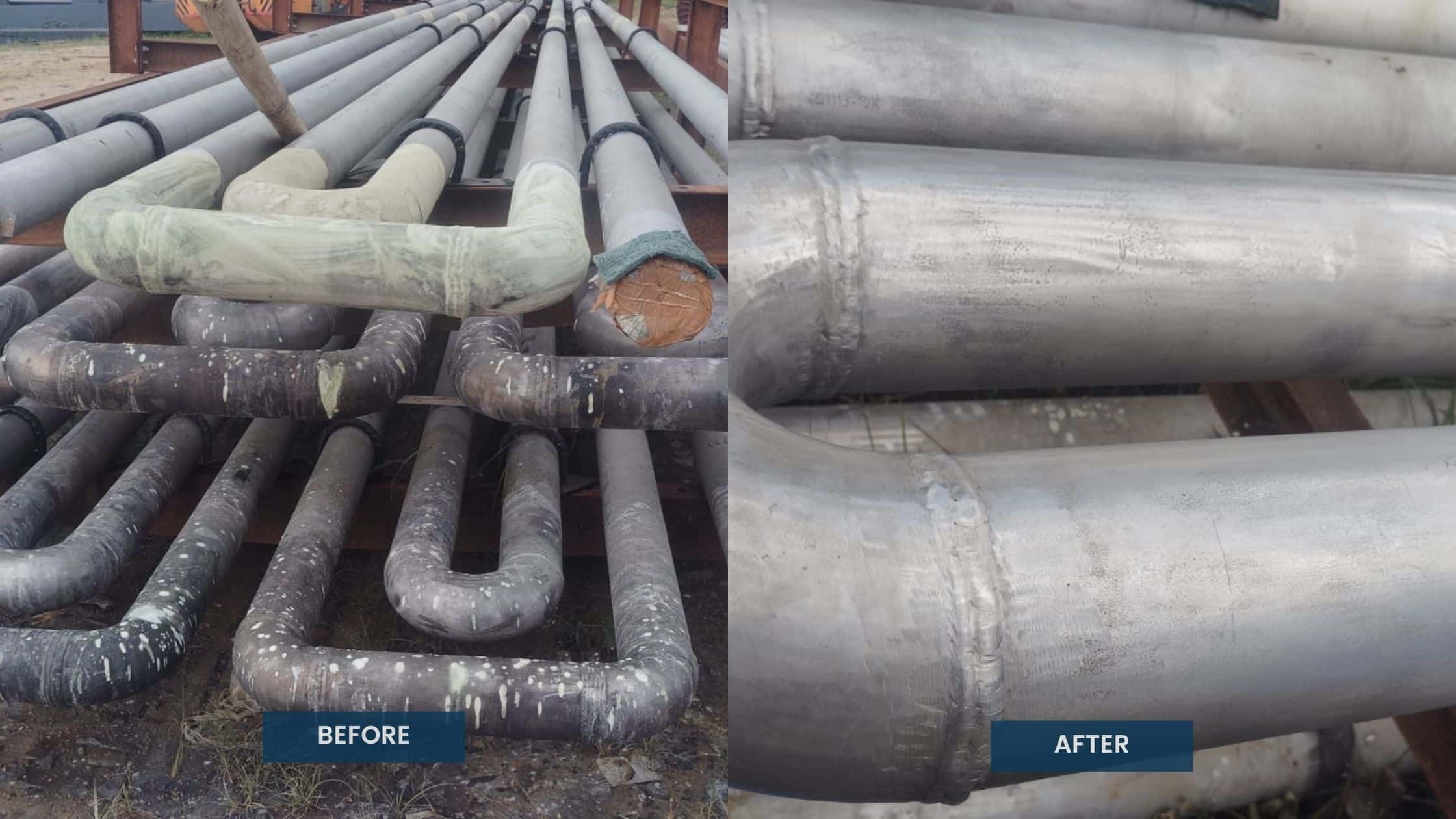

Corroded boiler pipelines before and after chemical cleaning restoration.

Results

  1. Internal fouling thickness was reduced by over 85% based on post-cleaning inspection and sample coupon analysis.
  2. The boiler achieved ~18% improvement in heat transfer efficiency and steam output stabilized without excess fuel firing.
  3. Differential pressure across pipeline sections returned close to baseline design values.
  4. Shutdown time for cleaning was reduced by 40% compared to conventional mechanical cleaning attempts.
  5. Long-term corrosion risk reduced due to effective post-passivation layer formation on pipeline internals.
